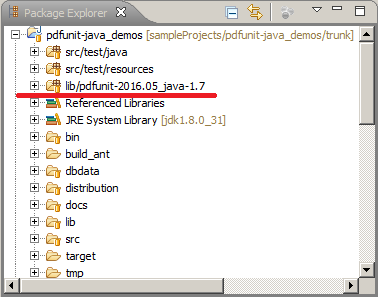

A simple way to configure Eclipse for PDFUnit is to include the installation directory PDFUNIT_HOME and all JAR files individually in the classpath:

Another option is to move the file pdfunit.config out of PROJECT_HOME into another folder, for example src/test/resources, and put that folder into the classpath.

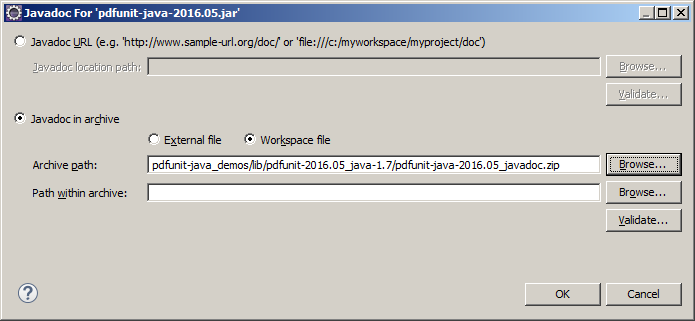

PDFUnit includes the file PDFUNIT_HOME/pdfunit-java-VERSION_javadoc.zip which can be registered in Eclipse to let Eclipse show the Javadoc comments.

Many options exist to configure ANT for PDFUnit. In all options the JAR files of PDFUNIT_HOME and PDFUNIT_HOME/lib/* have to be put into the classpath. Additionally the file pdfunit.config must be included in classpath.

If you have not changed the pdfunit.config, it is simple to include PDFUNIT_HOME itself in the classpath additionally to the JAR files as is shown by the following listing:

<!--
  It is important to have the directory of PDFUnit itself in the classpath,
  because the file 'pdfunit.config' must be found.
-->
<property name="dir.build.classes"          value="build/classes" />
<property name="dir.external.tools"         value="lib-ext" />
<property name="dir.external.tools.pdfunit" value="lib-ext/pdfunit-2016.05" />

<path id="project.classpath">
  <pathelement location="${dir.external.tools.pdfunit}" />
  <pathelement location="${dir.build.classes}" />

  <!-- If there are problems with duplicate JARs, use more detailed filesets: -->
  <fileset dir="${dir.external.tools}">
    <include name="**/*.jar"/>
  </fileset>
</path>

The file pdfunit.config can be moved to an individual folder, for example into src/test/resources. This way is recommended if you want to change the config file. How to configure PDFUnit is described in chapter 12.5: “Using the pdfunit.config File”. Then the classpath in ANT looks like this:

<path id="project.classpath">
  <!--
  The file 'pdfunit.config' should not be located more than once in
  the classpath, because it hurts the DRY principle.
  -->
  <pathelement location="src/test/resources" />
  <pathelement location="${dir.external.tools.pdfunit}" />
  <pathelement location="${dir.build.classes}" />

  <!-- If there are problems with duplicate JARs, use more detailed fileset: -->
  <fileset dir="${dir.external.tools}">
    <include name="**/*.jar"/>
  </fileset>
</path>

The current release of PDFUnit (2016.05) is not provided in a public Maven repository. To use it with Maven despite this fact, you have to install it into a local or company-wide repository. You can do it with the following command. Change to the directory PDFUNIT_HOME\lib and run this command:

mvn install:install-file -Dfile=<PATH_TO>pdfunit-java-VERSION.jar -DpomFile=<PATH_TO>pom.xml

The next step is to copy pdfunit.config into the directory src/test/resources.

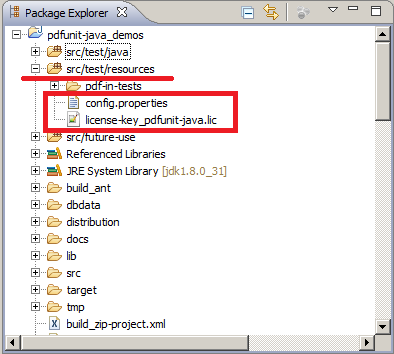

The following image shows the resulting project layout:

Register the PDFUnit library to your pom.xml.

<dependency>
  <groupId>com.pdfunit</groupId>
  <artifactId>pdfunit</artifactId>
  <version>2016.05</version>
  <scope>compile</scope>
</dependency>

The license file license-key_pdfunit-java.lic must also be included in the classpath. Otherwise the message box with the math calculation is shown.
